The Punto Evo range from Vortice comprises wall, ceiling and false-ceiling axial fans, ideal for ventilation in small and medium size residential and commercial premises, also in the presence of medium length exhaust ducts. In this article, we look at the key features, the versions available as well as the technical features of the Punto Evo range.

This is part one of four covering Vortice wall and window axial fans.

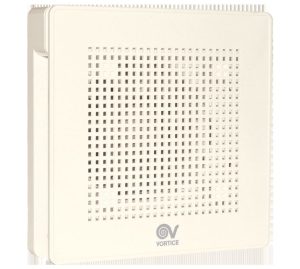

The Punto Evo range. Supplied by Vortice

Key features

  • Very low noise emissions for high comfort of use.
  • Very high (IP45) protection rating from dust and water jets, exceeding the requirements of use in Zone 1 bathroom installations.
  • 2-speed motors designed to ensure low consumption.
  • Sealed non-return valves to prevent unwanted inflows of air and bad odours when the device is switched off.
  • Reduced exhaust sleeve depth, compatible with installation immediately upstream of a 90° bend.
  • Sophisticated electronic equipment that meets a particularly wide range of needs.

Version

10 models, with nominal diameter 100mm and 120mm, available in versions with a timer, with an advanced timer, with humidity sensor and presence sensor.

Technical features

  • White, shock-proof, plastic resin (ABS) panels, prevents ageing caused by exposure to sunlight (“UV resistant”).
  • Shaded pole motors, heat protected, 2-speed with shafts mounted on ball bearings to guarantee long-lasting (at least 30 000h) continuous service at the maximum plate temperature.
  • Speed adjustment using VORTICE accessory devices. Helico-centrifugal impellers optimised to ensure high performance, low consumption and low noise emissions, when coupled with underlying flow conditioners.
  • Air-tight butterfly valve on the delivery spigots, to prevent unwanted inflows of air and bad odours when the device is switched off.
  • Performance and safety certified by third party body (IMQ) Protection rating from dust and water: IP45.
  • Class of electric isolation: II 🞕 (earthing not required).

Read more about the product here: vortice_punto_evo.pdf

Source: Supplied by Vortice
