The Punto Four range from Vortice comprises wall, ceiling and false-ceiling axial fans, ideal for ventilation in small and medium size residential and commercial premises whose layout allows for direct exhaust or exhaust in short length pipes. The elegant front panel – which hides the hole behind it – reduces the aesthetic impact of the installed product. In this article, we look at the key features, the versions available as well as the technical features of the Punto Evo range.
This is part three of four covering Vortice wall and window axial fans.
The Punto Four range.
All images supplied by Vortice
Key features
- Modern design, in line with the latest trends, which combines aesthetic elegance with easy product cleaning and maintenance.
- Reduced exhaust sleeve depth, compatible with installation immediately upstream of a 90° bend.
- High protection from water, suitable for use in Zone 1 bathroom installations and in the presence of high relative humidity.
Version
6 models, with nominal diameter between 90mm and 120mm, also in the versions with timer.
Technical features
- White, shock-proof, plastic resin (ABS) panels, prevents ageing caused by exposure to sunlight (“UV resistant”).
- Shaded pole motors, heat protected, with shafts mounted on bushings with self-centring and self-lubricating neck to guarantee silent, reliable operation for a duration consistent with the destination of use of the products. Speed adjustment using Vortice accessory devices.
- Axial impellers with airfoil shaped blades to combine high performance with low noise emissions.
- Non-return valves on the delivery spigots to prevent unwanted inflows of air and bad odours when the device is switched off.
- T models equipped with electronic timer for automatic product switch-off after a pre-fixed period of time, which can be set in the installation phase, from 3’-20’ (default setting 3’).
- Performance and safety certified by third party body (IMQ)
- Protection rating from dust and water: IPX4.
- Class of electric isolation: II 🞕 (earthing not required).

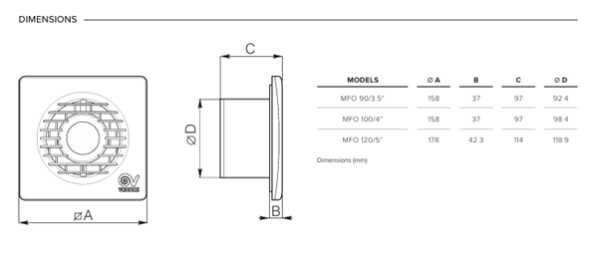

Dimensions.
Read more about the product here: Vortice-Punto-Four.pdf
